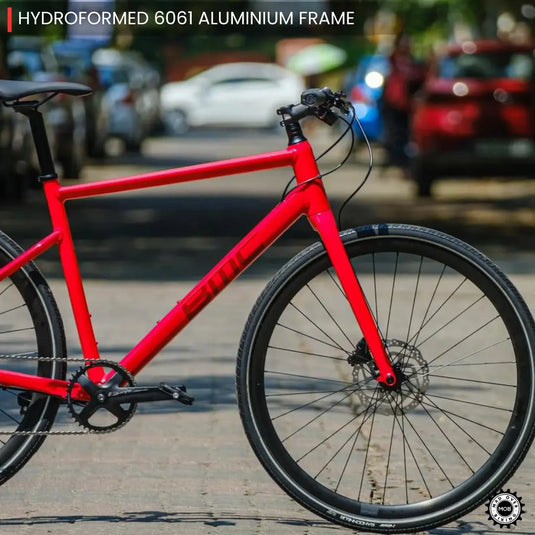

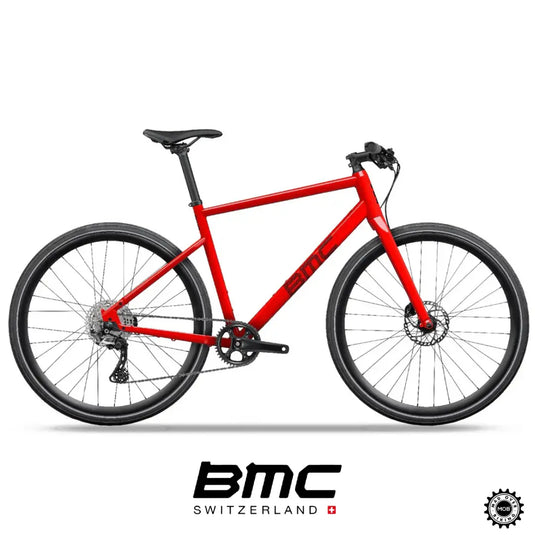

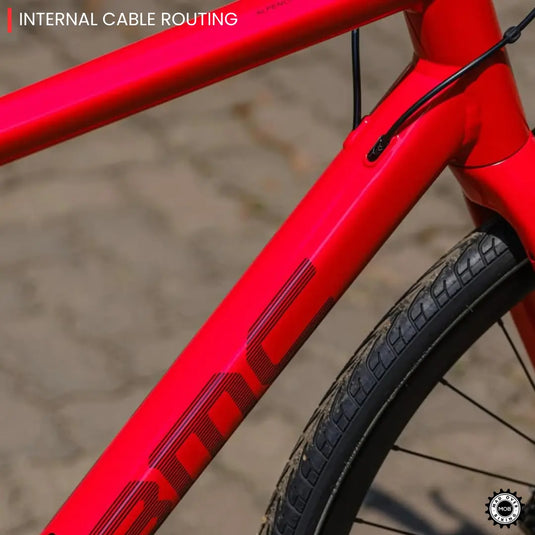

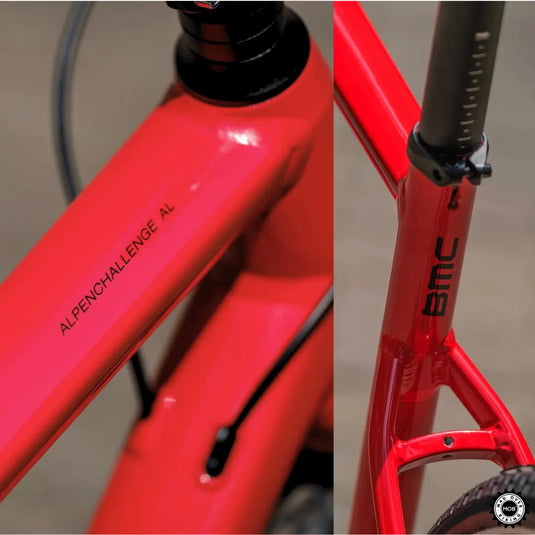

With its classy looks, exacting attention to detail and practical integration, the Alpenchallenge AL could only be a BMC. Its sporty, endurance-inspired, smooth welded, Premium Aluminium frame and fork have fender mounts, and the internally cabled frame is powder coated for durability.

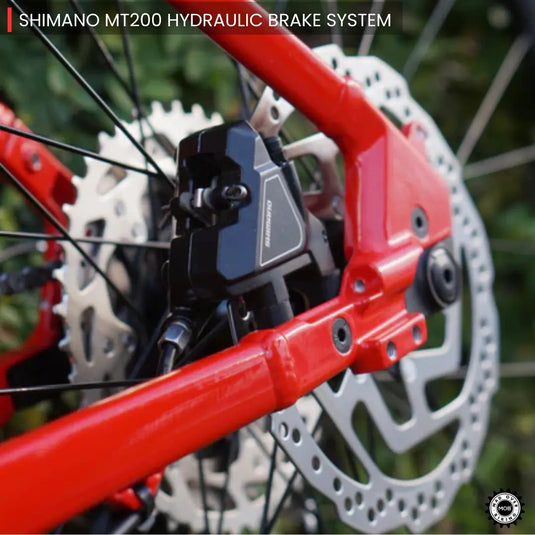

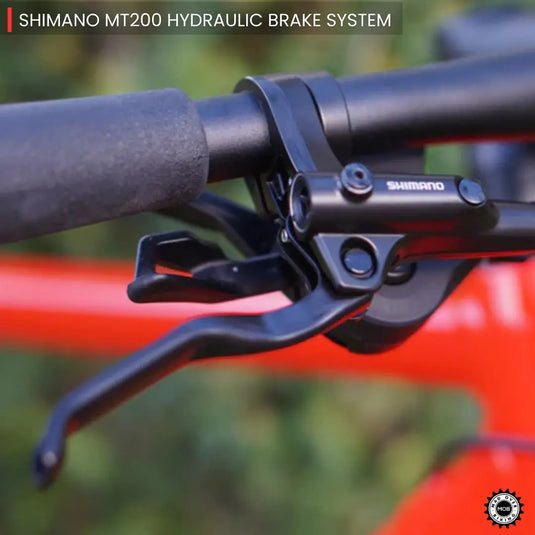

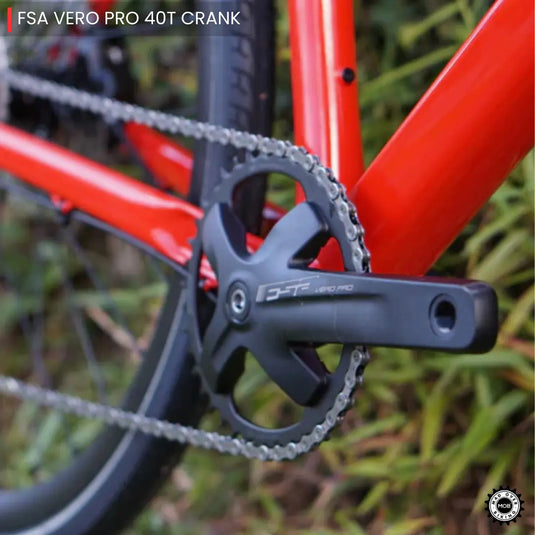

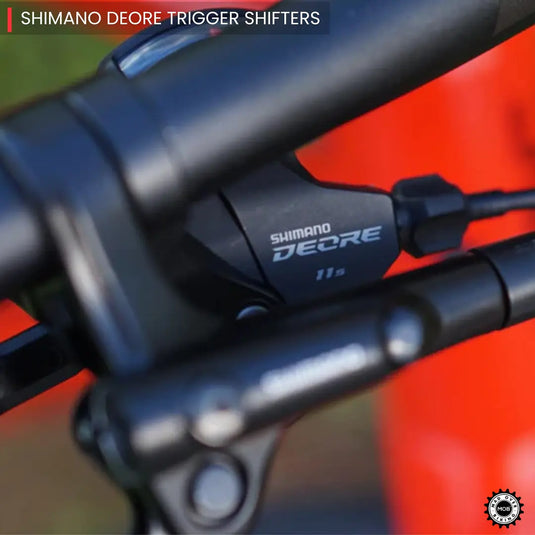

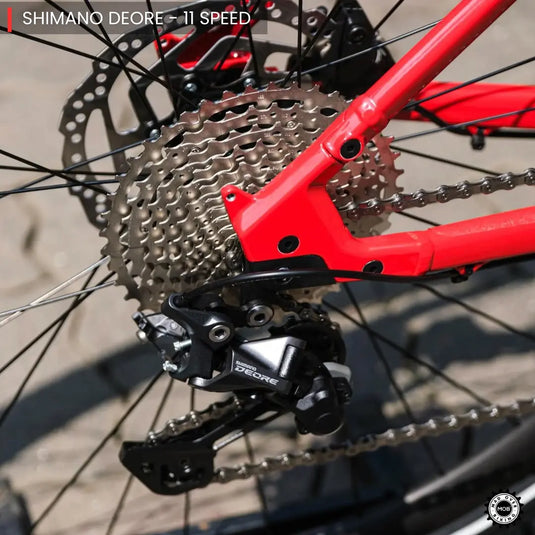

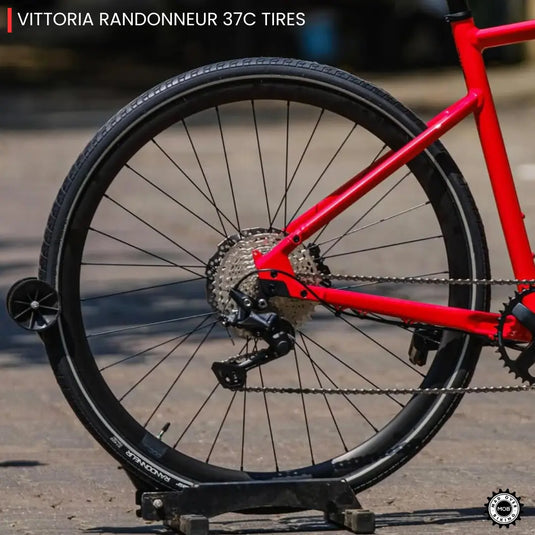

Shimano’s 11-speed Deore drivetrain is paired with an FSA Vero Pro crankset and Shimano MT200 disc brakes, and the wheels are PFR300, with Vittoria Randonneur – 37mm tires.
Please note: This bike is not fully assembled!
You still need to do the following:
- Attach the pedals
- Screw on the handlebars
- Insert front wheel
- Insert seat post incl. saddle
Size Chart :
Manufacturer's Information -
These components are standard fit by the company. If you wish to customize, we can discuss options. Please feel free to reach out to us HERE

|
||||
---|---|---|---|---|
Wheels
|
700c | 700c | 700c | 700c |
Stack
|
560 | 590 | 620 | 650 |
Reach
|
400 | 415 | 425 | 440 |
Stack/Reach Ratio
|
1.40 | 1.42 | 1.46 | 1.48 |
Top Tube Length
|
560 | 584 | 603 | 626 |
Seat Tube Length
|
480 | 510 | 540 | 555 |
Seat Tube Angle
|
74.0 | 74.0 | 74.0 | 74.0 |
Head Tube Length
|
133 | 165 | 197 | 229 |
Head Tube Angle
|
70.0 | 70.0 | 70.0 | 70.0 |
BB Drop
|
67 | 67 | 67 | 67 |
Front Center
|
631 | 657 | 677 | 703 |
Chainstay Length
|
440 | 440 | 440 | 440 |
Wheelbase
|
1,062 | 1,088 | 1,109 | 1,135 |
Rake
|
45 | 45 | 45 | 45 |
Trail
|
75 | 75 | 75 | 75 |
Standover Height
|
760 | 790 | 819 | 838 |
Stem Length
|
90 | 90 | 100 | 100 |
Stem Angle
|
8.0 | 8.0 | 8.0 | 8.0 |
Crank Length
|
170 | 170 | 175 | 175 |
Handlebar Width
|
600 | 600 | 600 | 600 |
🐐 Measurements listed in mm and degrees
